TRT 60 Rough Terrain Crane

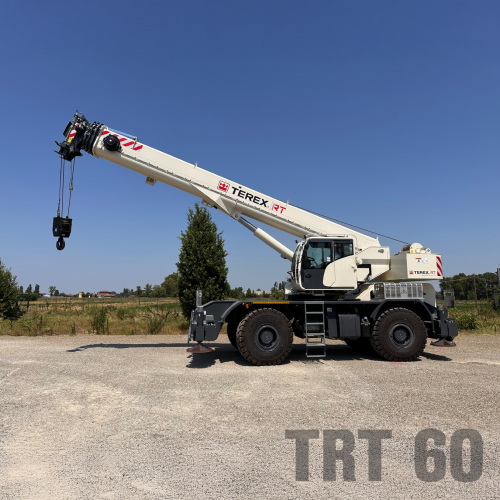

The Terex TRT 60 is a rough terrain crane with a maximum lifting capacity of 60 t (66 US tons). Specifically designed for rugged terrain and unpaved work environments, it combines outstanding off-road mobility with superior lifting performance. The TRT 60 is well-suited for infrastructure projects, port operations, mining, energy-related works, site logistics, and general heavy lifting tasks, providing reliable and efficient operation in demanding conditions.

- DETAIL -

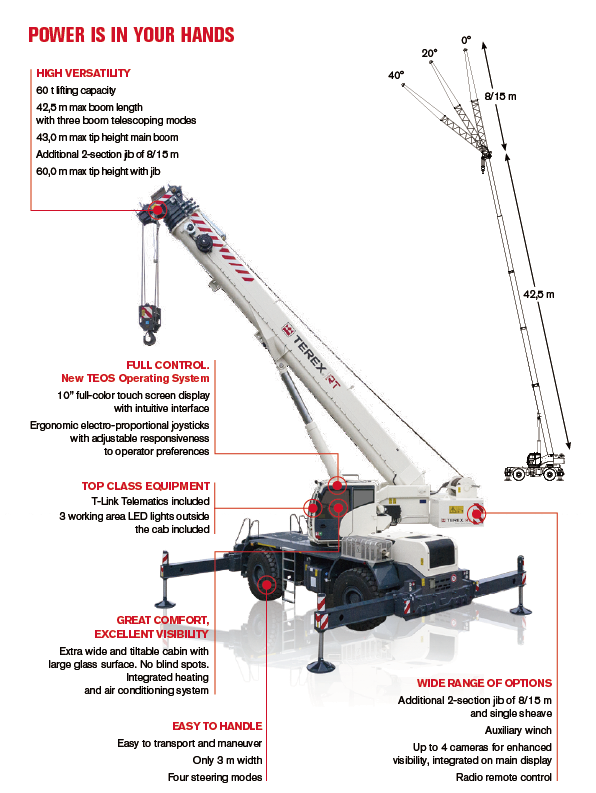

Key Specifications:

Maximum Lifting Capacity: 60 t (66 US tons)
Main Boom Length: 42.5 m (139.4 ft), four-section hydraulic telescopic design
Maximum Tip Height (Main Boom): 46 m (151 ft)

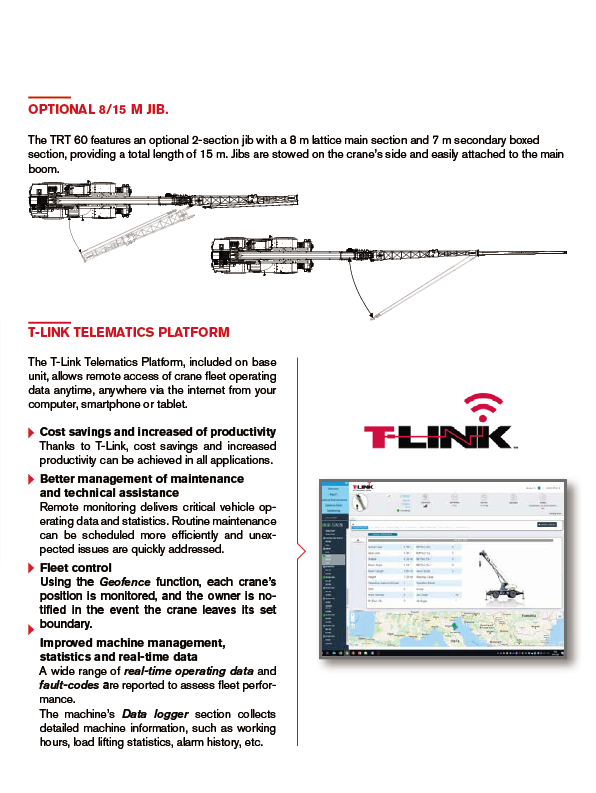

Jib Length: Optional 8 m (26.25 ft) or 15 m (49.2 ft)
Maximum Tip Height (with Jib): 60.1 m (197 ft)

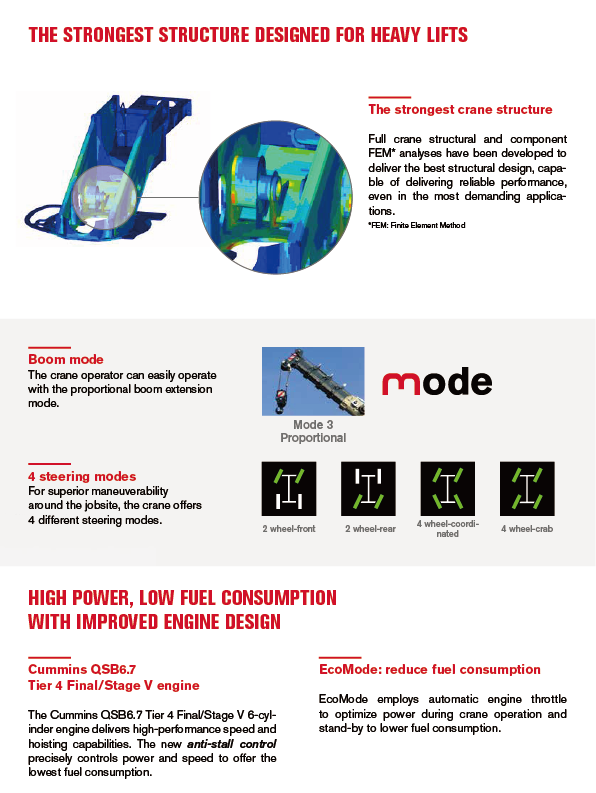

Steering Modes: Four steering modes (front-wheel, rear-wheel, coordinated, crab)

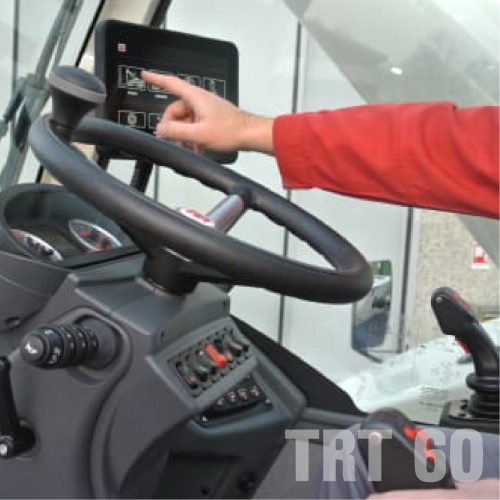

Cab: Extra-wide, adjustable cab equipped with ergonomic electronic proportional joysticks

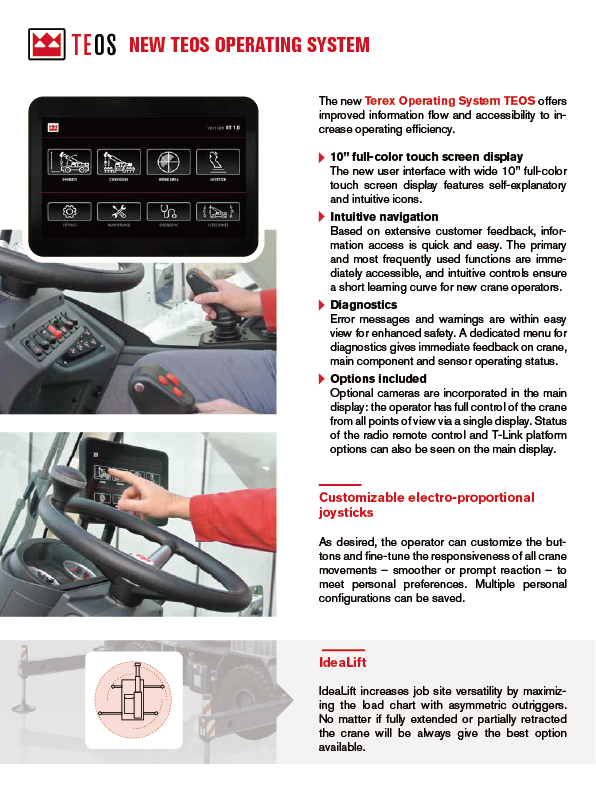

Control System: Terex Operating System (TEOS) with 10-inch touchscreen display, offering an intuitive interface, improved information flow, and enhanced operational efficiency
