TRT 70 Rough Terrain Crane

The Terex TRT 70 is a rough terrain crane with a maximum lifting capacity of 70 t. Specifically engineered for rugged terrain and unpaved work environments, it offers a combination of outstanding off-road mobility and high lifting performance. The TRT 70 is suitable for infrastructure projects, port operations, mining, energy-related works, site logistics, and general heavy lifting applications, delivering reliability and efficiency across diverse work conditions.
TEREX TRT 70(1)
TEREX TRT 70(2)
TEREX TRT 70(3)
  • TEREX TRT 70(1)
  • TEREX TRT 70(2)
  • TEREX TRT 70(3)
- DETAIL -

Key Specifications:

  • Maximum Lifting Capacity: 70 t

  • Main Boom Length: 43.5 m, four-section hydraulic telescopic design

  • Maximum Tip Height (Main Boom): 46 m

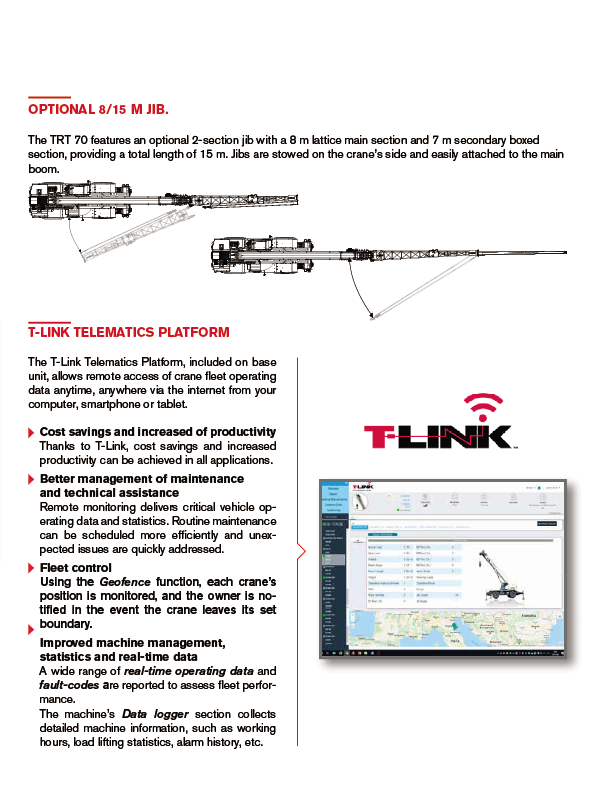

  • Jib Length: Optional 8 m or 15 m

  • Maximum Tip Height (with Jib): 58.5 m

  • Steering Modes: Four steering modes (front-wheel, rear-wheel, coordinated, crab)

  • Cab: Extra-wide, adjustable cab with ergonomic electronic proportional joysticks

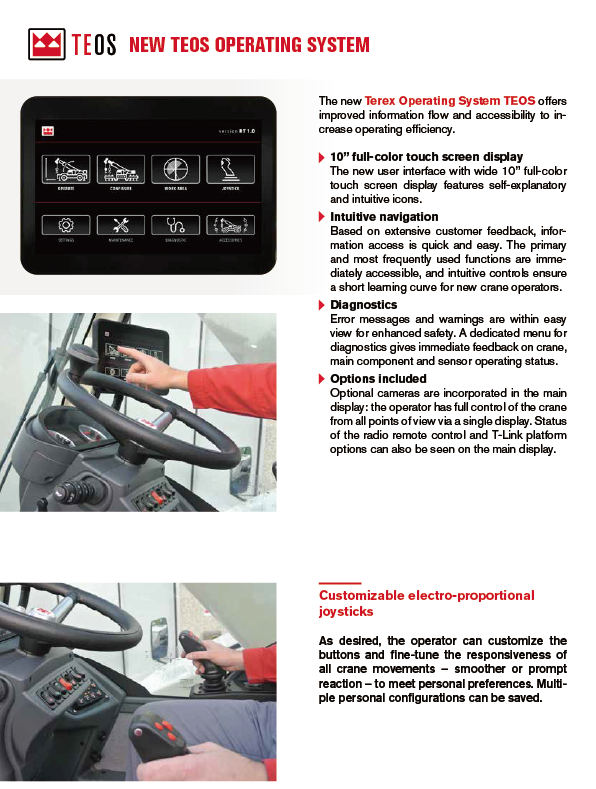

  • Control System: Terex Operating System (TEOS) with 10-inch touchscreen display, offering an intuitive interface, improved information flow, and enhanced operational efficiency

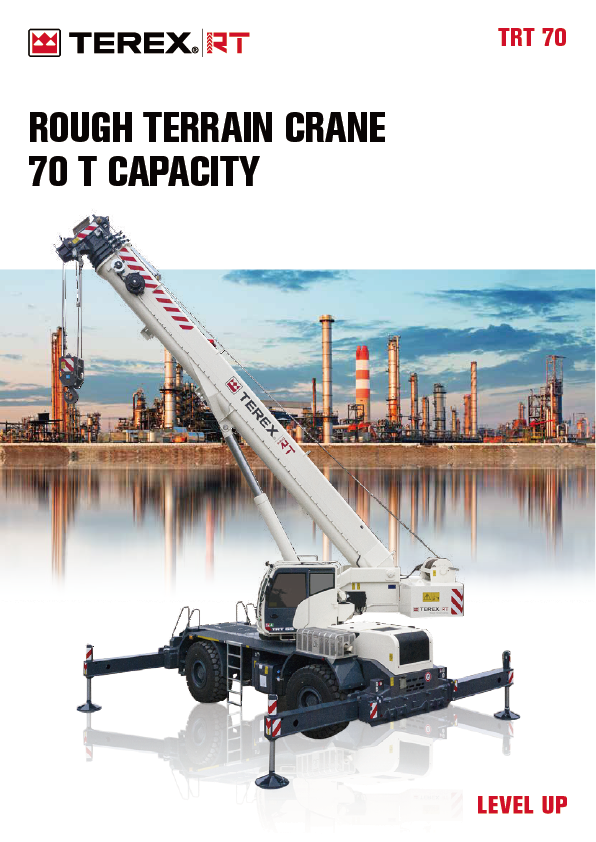

    TRT-70_rough terrain crane 70T capacity

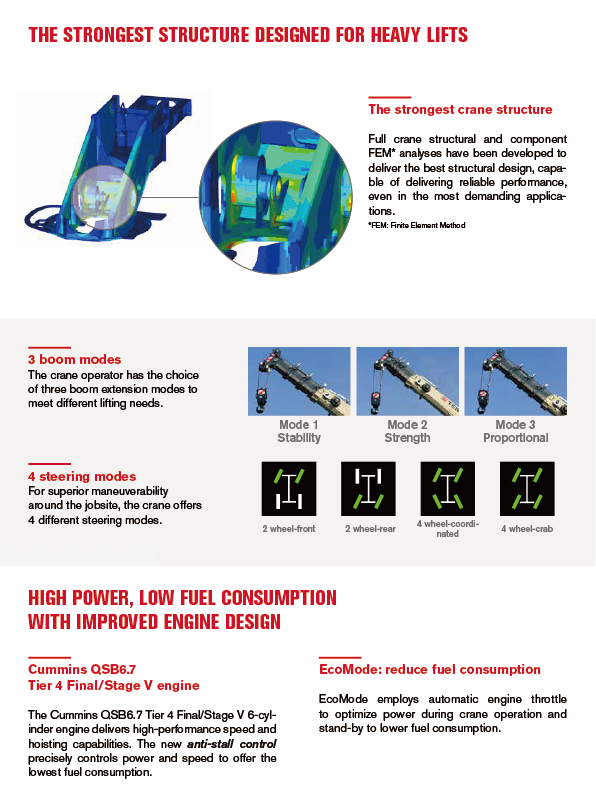

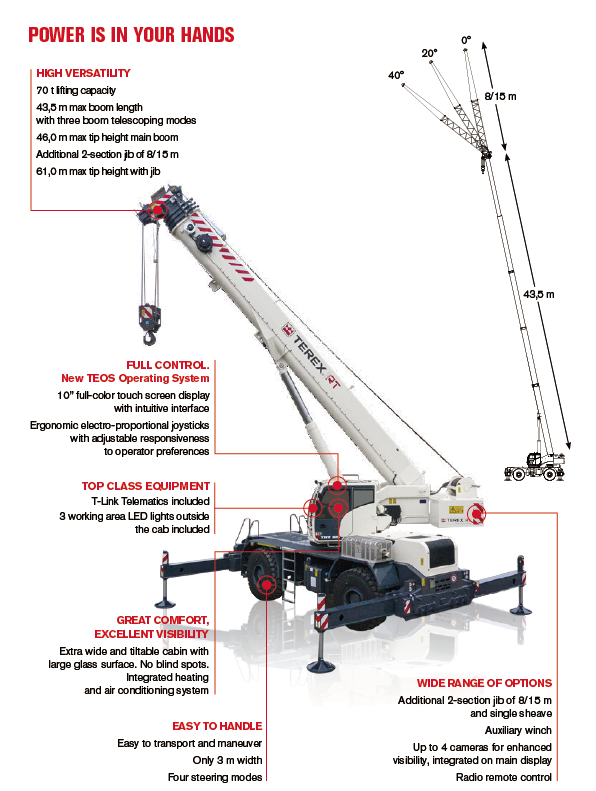

    TRT-70_power is in your handsTRT-70_the strongest structure designed for heavy liftsTRT-70_optional 8/15 M jibTRT-70_newteos operating system
