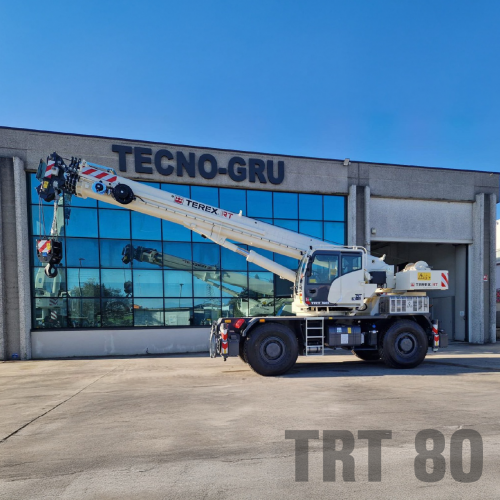

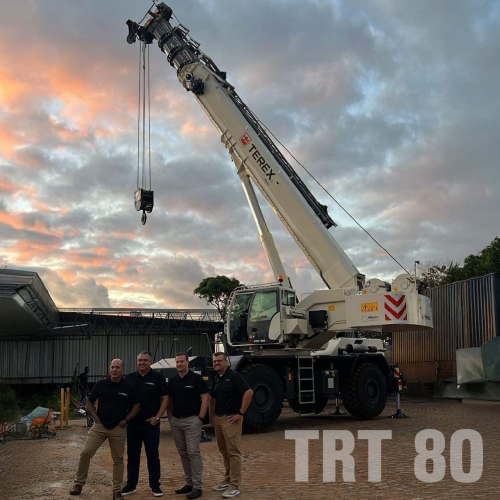

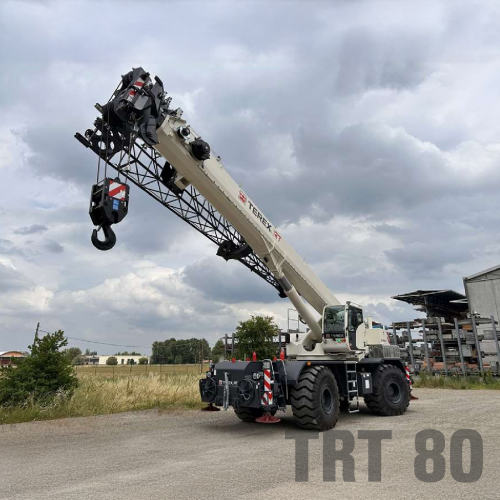

TRT 80 Rough Terrain Crane

The Terex TRT 80 is a rough terrain crane with a maximum lifting capacity of 80 tons, designed to combine powerful lifting performance with exceptional off-road capability. Its five-section telescopic boom, optional jib extensions, and four steering modes provide superior flexibility for construction sites, ports, mining, energy projects, and heavy logistics applications. Equipped with the Terex Operating System (TEOS) and an advanced ergonomic cabin, the TRT 80 delivers a safer, more intuitive, and efficient operating experience, even in the most demanding environments.
TEREX TRT 80(1)
TEREX TRT 80(2)
TEREX TRT 80(3)
  • TEREX TRT 80(1)
  • TEREX TRT 80(2)
  • TEREX TRT 80(3)
- DETAIL -

Key Specifications

  • Maximum Lifting Capacity: 80 tons

  • Main Boom Length: 42.1 m (five-section hydraulic telescopic design)

  • Maximum Tip Height (Main Boom): 45 m

  • Jib Length: Optional 8 m or 15 m

  • Maximum Tip Height (with Jib): 59.5 m

  • Steering Modes: Four (front-wheel, rear-wheel, coordinated, crab)

  • Cabin: Extra-wide, adjustable design with ergonomic electro-proportional joysticks

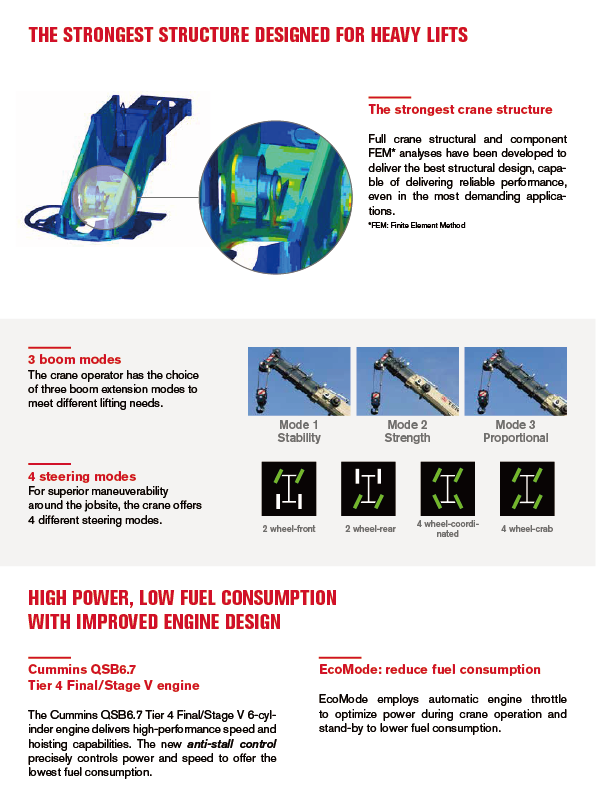

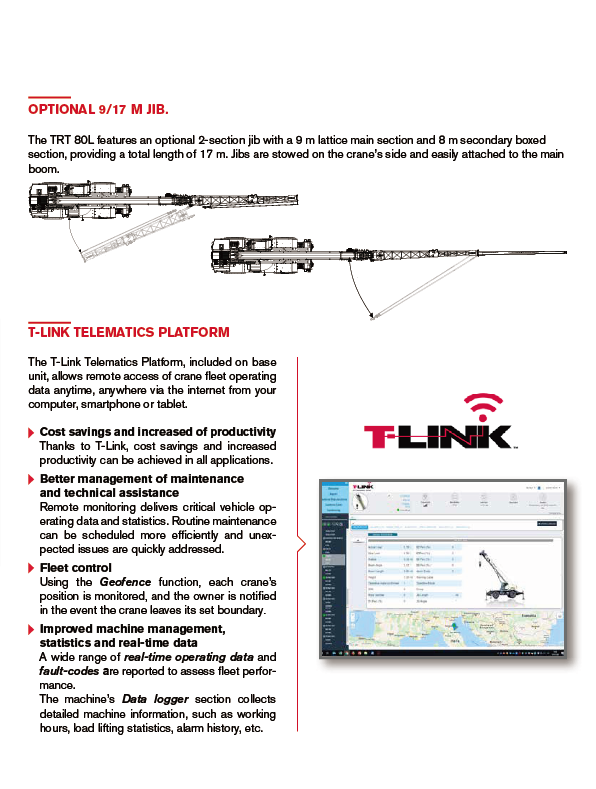

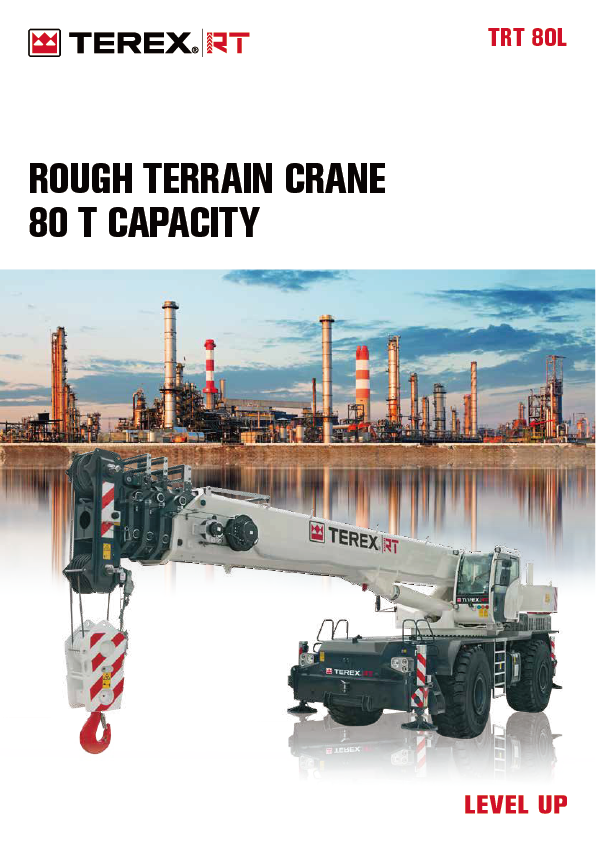

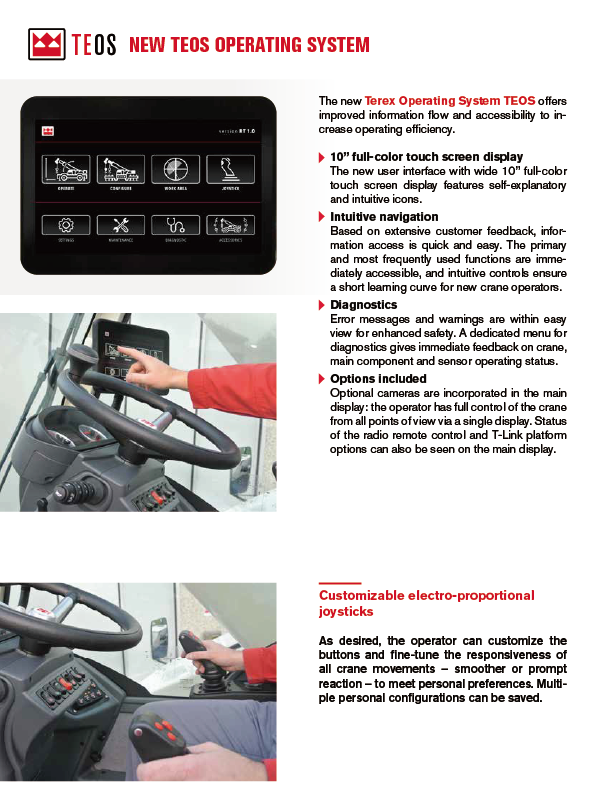

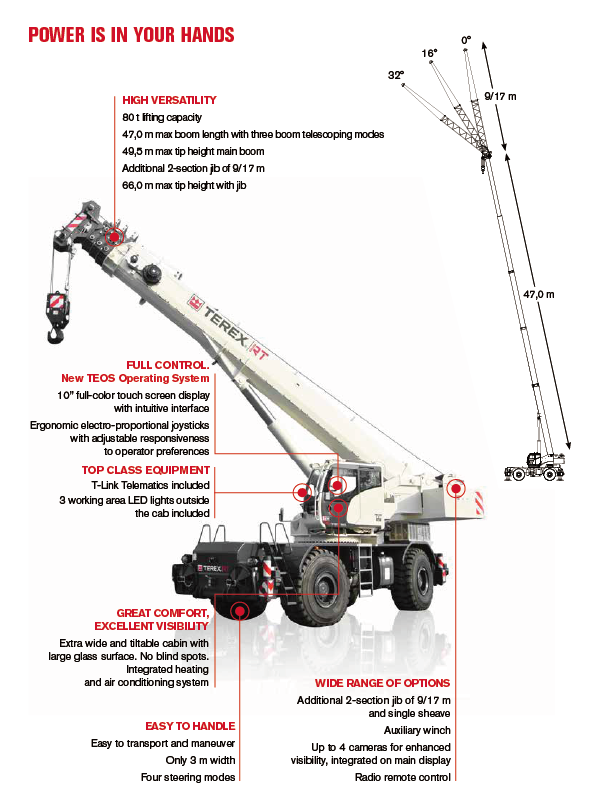

  • Control System: Terex Operating System (TEOS) with 10-inch touchscreen, offering improved interface, information flow, and operational efficiencyTRT-80_rough terrain crane 80T capacityTRT-80_power is in your handsTRT-80_ the strongest structure designed for heavy liftsTRT-80_optional 9/17 M jibTRT-80_new teos operating system
