Lifting & Hoisting Equipment TEREX Rough Terrain Cranes

TRT 90 Rough Terrain Crane

The Terex TRT 90 Rough Terrain Crane offers a maximum lifting capacity of 90 tons, engineered for superior lifting performance and exceptional off-road mobility. Its five-section telescopic boom with three extension modes, optional jib configurations, and versatile four-wheel steering modes provide outstanding flexibility in demanding environments such as construction sites, ports, mining operations, energy projects, and heavy logistics. Equipped with the Terex Operating System (TEOS) and a modern extra-wide ergonomic cabin, the TRT 90 ensures intuitive operation, enhanced safety, and optimized efficiency, making it a reliable solution for a wide range of lifting applications.

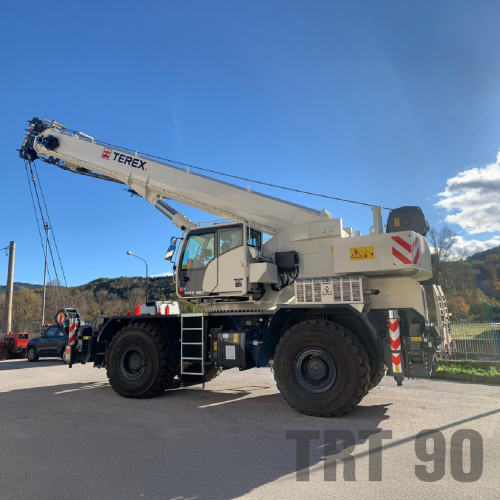

TEREX TRT 90(1)

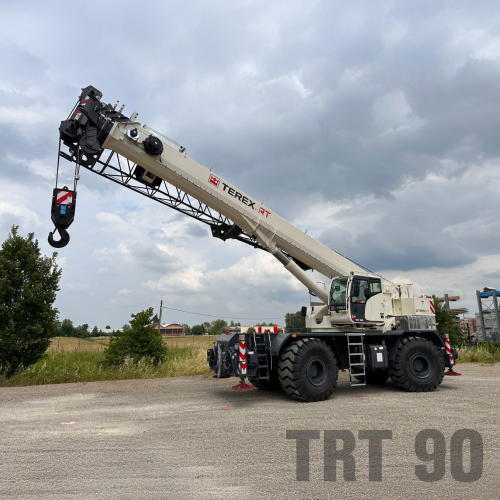

TEREX TRT 90(2)

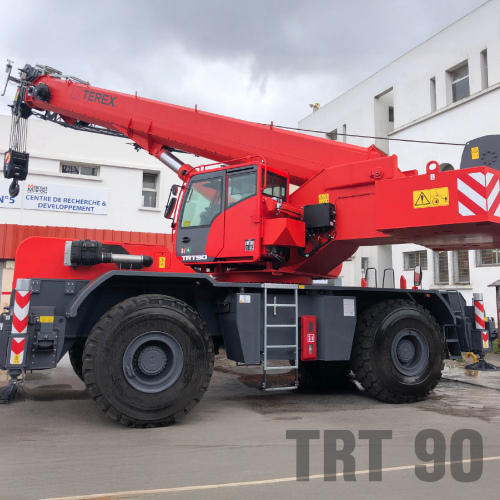

TEREX TRT 90(3)
  • TEREX TRT 90(1)
  • TEREX TRT 90(2)
  • TEREX TRT 90(3)
- DETAIL -

Key Specifications

  • Maximum Lifting Capacity: 90 tons

  • Main Boom Length: 47.0 m (five-section hydraulic telescopic design with three extension modes)

  • Maximum Tip Height (Main Boom): 49.5 m

  • Jib Length: Optional 9 m or 17 m

  • Maximum Tip Height (with Jib): 66.0 m

  • Steering Modes: Four (front-wheel, rear-wheel, coordinated, crab)

  • Cabin: Extra-wide, adjustable cabin with ergonomic electro-proportional joysticks

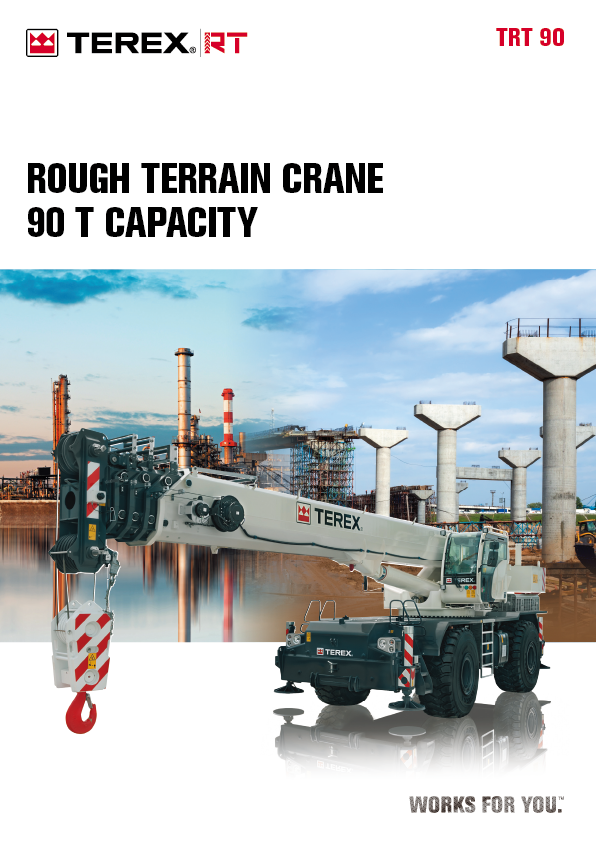

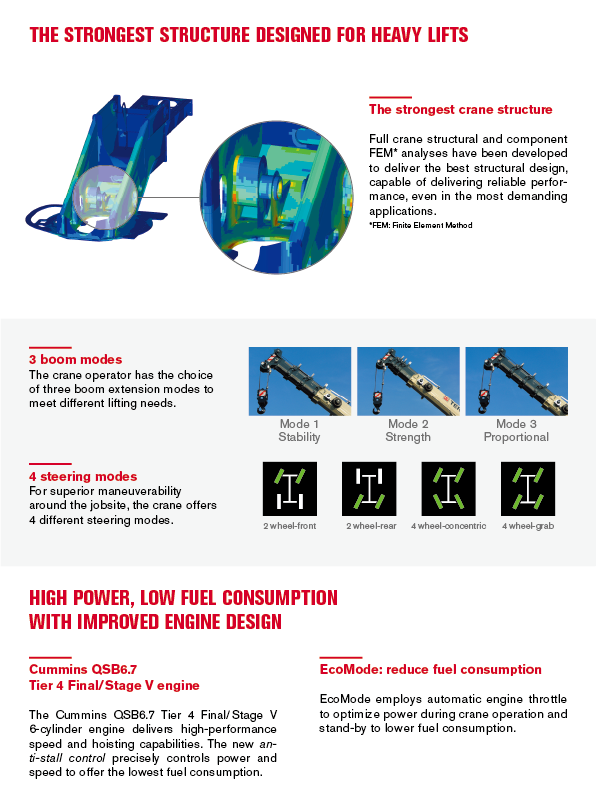

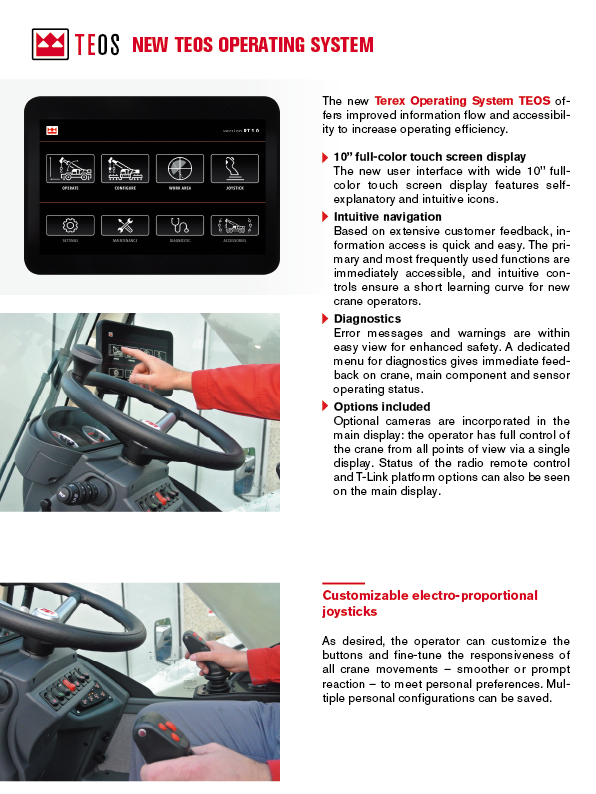

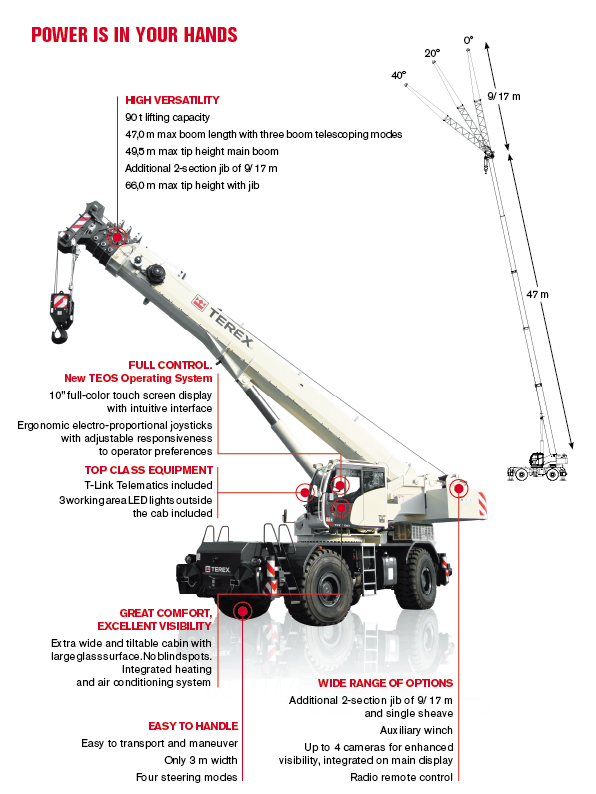

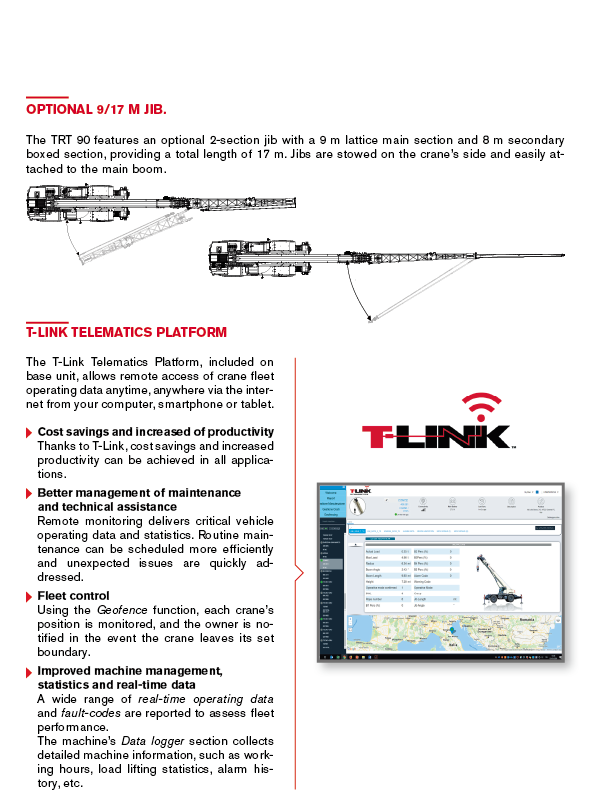

  • Control System: Terex Operating System (TEOS) with 10-inch touchscreen, improving interface, information flow, and operational efficiencyTRT-90_rough terrain crane 90 T capacityTRT-90_power is in your handsTRT-90_the strongest structure designed for heavy liftsTRT-90_optional 9/17 M jibTRT-90_new teos operating system
