TRT 100 Rough Terrain Crane

The Terex TRT 100 Rough Terrain Crane offers a maximum lifting capacity of 100 tons (110 US tons), engineered to deliver exceptional performance in demanding environments. With a five-section telescopic boom featuring three extension modes, optional jib configurations, and versatile four-wheel steering, it provides excellent flexibility and operational efficiency across construction sites, ports, mining operations, energy projects, and heavy logistics. The TRT 100 is equipped with the advanced Terex Operating System (TEOS) and a spacious, ergonomically designed cabin with electro-proportional joysticks, ensuring intuitive operation, enhanced safety, and optimized workflow. Its robust design and superior off-road mobility make the TRT 100 a reliable solution for a wide range of heavy lifting applications.
TEREX TRT 100(1)
TEREX TRT 100(2)
TEREX TRT 100(3)
  • TEREX TRT 100(1)
  • TEREX TRT 100(2)
  • TEREX TRT 100(3)
- DETAIL -

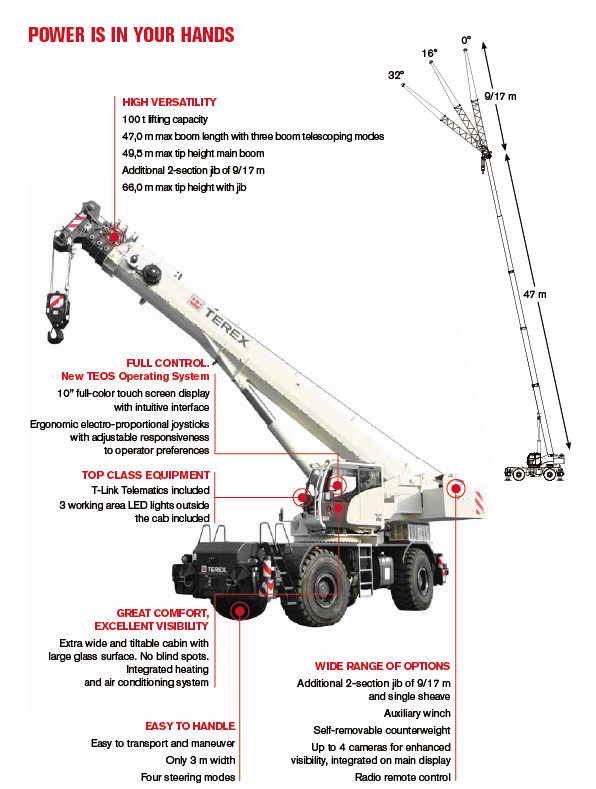

Key Specifications

  • Maximum Lifting Capacity: 100 tons (110 US tons)

  • Main Boom Length: 47.0 m (five-section hydraulic telescopic design with three extension modes)

  • Maximum Tip Height (Main Boom): 49.5 m

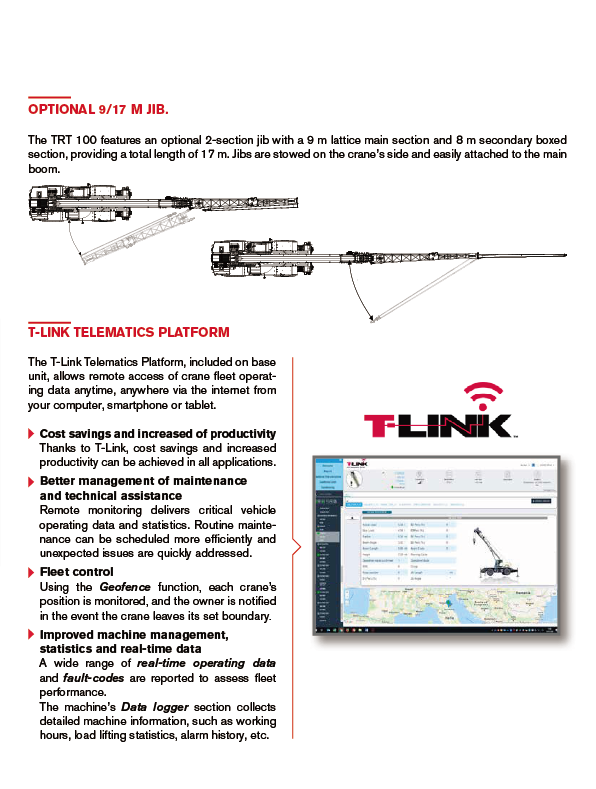

  • Jib Length: Optional 9 m or 17 m

  • Maximum Tip Height (with Jib): 66.0 m

  • Steering Modes: Four (front-wheel, rear-wheel, coordinated, crab)

  • Cabin: Extra-wide, adjustable cabin with ergonomic electro-proportional joysticks

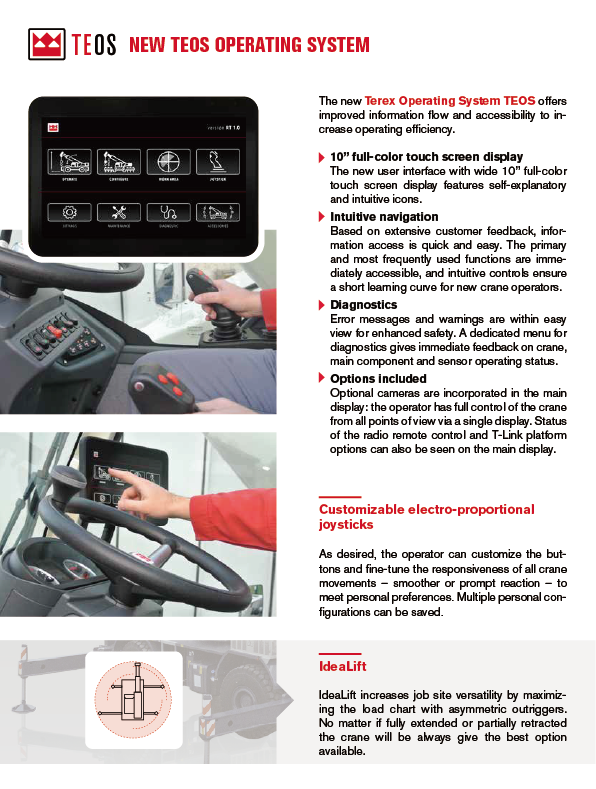

  • Control System: Terex Operating System (TEOS) with 10-inch touchscreen, improving interface, information flow, and operational efficiencyTRT-100_rough terrain crane 100 T capacityTRT-100_power is in your handsTRT-100_the strongest structure designed for heavy lifysTRT-100_optional 9/17 M jibTRT-100_new teos operating system
