RT 1080 Rough Terrain Crane

The Terex RT 1080 Rough Terrain Crane offers a maximum lifting capacity of 80 tons (88 US tons), designed for challenging terrain and unpaved job sites. Its 34.0 m five-section hydraulic telescopic main boom features dual-mode extension, reaching a maximum tip height of 56.5 m. Optional jibs of 8 m, 14 m, or 20 m increase the maximum tip height to 59 m, 63 m, or 66 m, respectively, for flexible lifting solutions. With three steering modes (front-wheel, rear-wheel, crab) and a compact 3.0 m width, the crane provides excellent maneuverability in tight or uneven work areas. The crane is equipped with a 7-inch full-color display for intuitive operation. Ideal for infrastructure, port operations, mining, energy projects, logistics, and general lifting applications, the RT 1080 ensures safe, reliable, and high-performance operations in demanding environments.

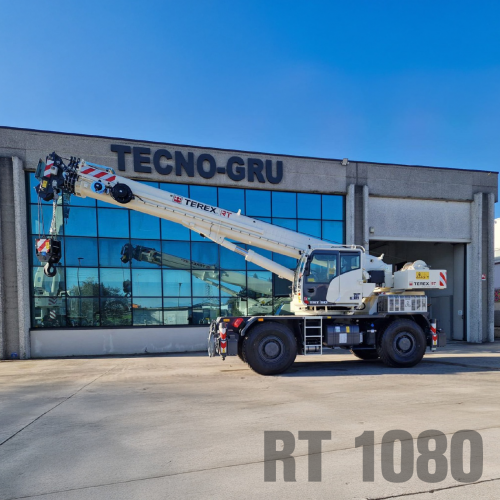

TEREX RT 1080(1)

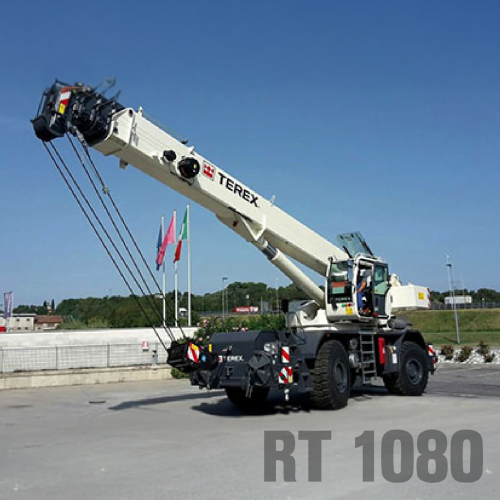

TEREX RT 1080(2)

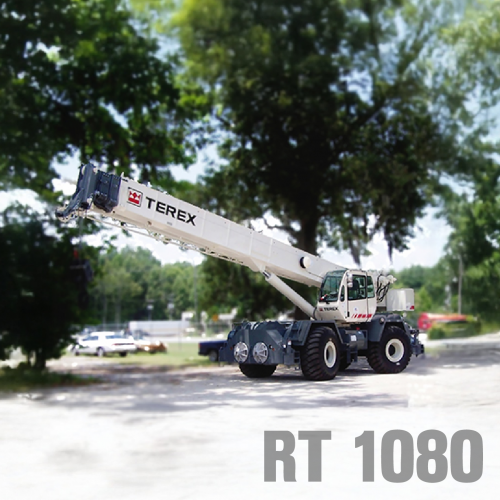

TEREX RT 1080(3)
  • TEREX RT 1080(1)
  • TEREX RT 1080(2)
  • TEREX RT 1080(3)
- DETAIL -

Key Specifications

  • Maximum Lifting Capacity: 80 tons (88 US tons)

  • Main Boom Length: 34.0 m (111.5 ft), five-section hydraulic telescopic, dual-mode extension

  • Maximum Tip Height (Main Boom): 56.5 m (185 ft)

  • Jib Options: 8 m, 14 m, or 20 m

  • Maximum Tip Height (with Jib): 59 m, 63 m, 66 m

  • Steering Modes: Three (front-wheel, rear-wheel, crab)

  • Width: 3.0 m, suitable for narrow job sites

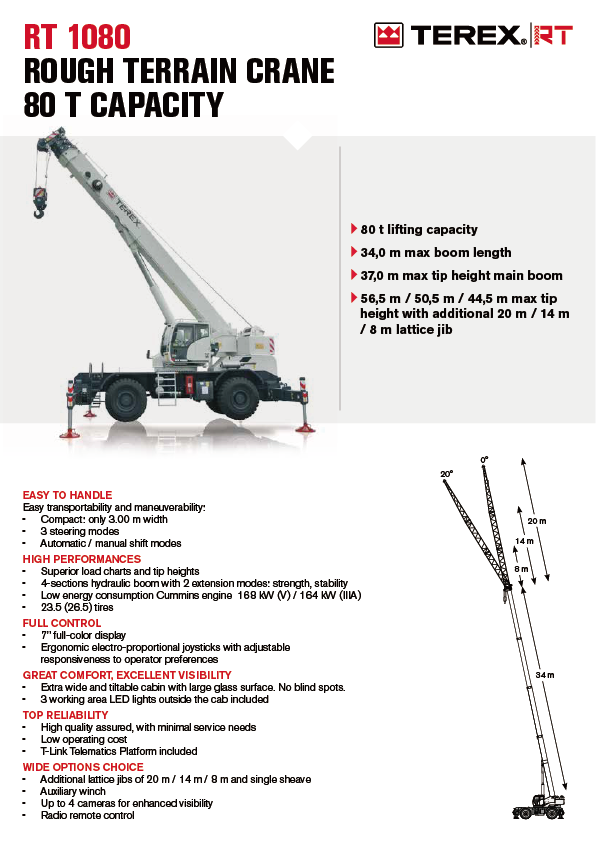

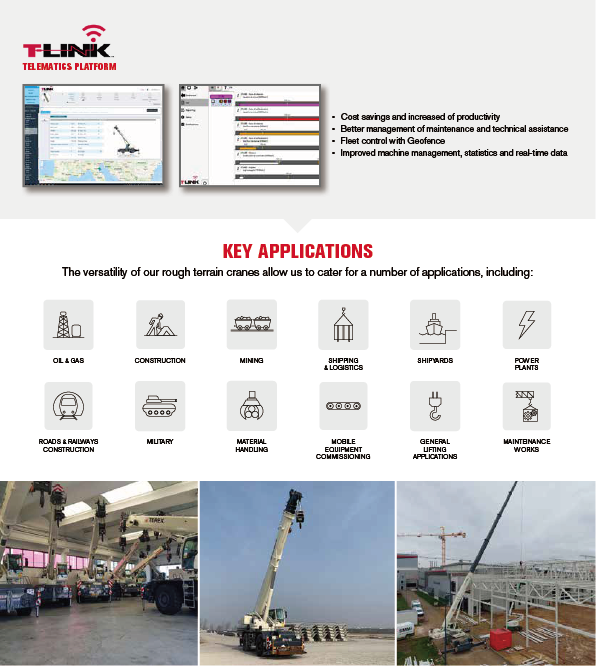

  • Control System: 7-inch full-color display with intuitive interfaceRT-1080_rough terrain crane 80 T capacityRT-1080_key applications
